PLATE FLANGES

PLATE FLANGES

A Flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system. It also provides easy access for cleaning, inspection or modification. Flanges are usually socketweld or screwed. Flanged joints are made by bolting together two flanges with a gasket between them to provide a seal.

Adfit India is a prominent Plate Flanges manufacturer, Plate Flanges exporter, Plate Flanges stockists, Pipe Fittings supplier in Mumbai, India, China, Japan, USA, Belgium, Brazil, Thailand, Egypt, Italy, Mexico, Pune, Iran, UAE, Hungary, Russia, South Korea, Bangalore, Chennai, Gujrat & worldwide.

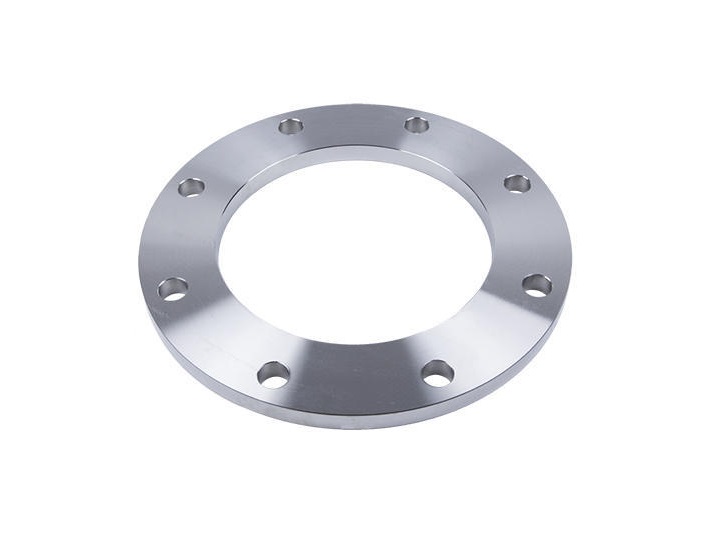

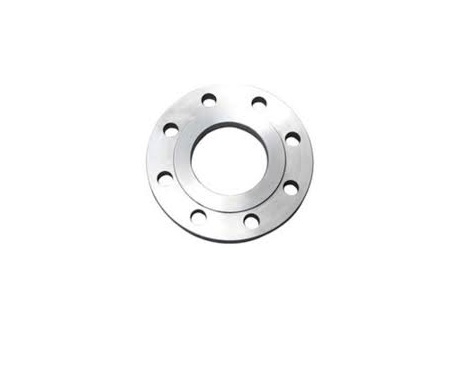

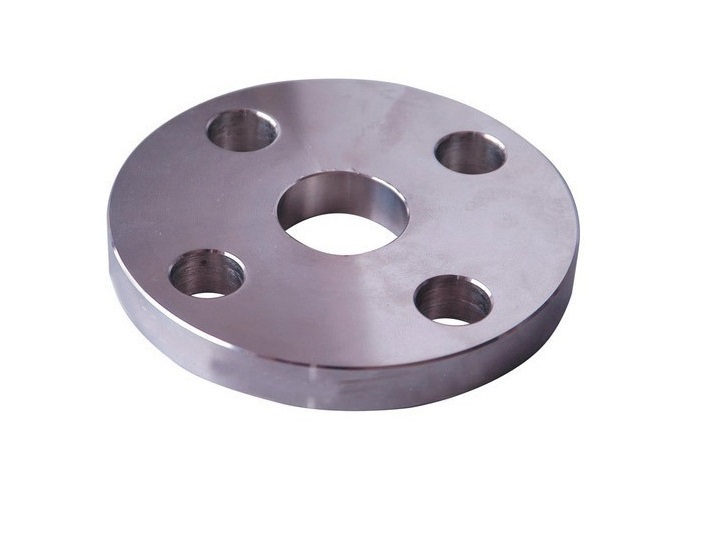

  • Plate Flange
  • Size :  1/2'' To 60'' ASME B16.5
  • Standard :  LBS : 150#, 300#, 600#, 900#, 1500#, & 2500#Table : ASA 150 & ASA 300 = D, E, F, H, DIN; ND-6, 10, 16, 25, 40 etc
  • Dimension: ASME B16.5, B16.47:2009, DIN EN1092-1
  • Stainless Steel Plate Flanges : ASTM A 240 / 182 F - 304/304H/304L, 316/316H/316L/316Ti, 309, 310, 317L, 321, 347, 904L etc.
  • Duplex Steel Plate Flanges : ASTM A815 - F51, F53, F55, F60
  • Carbon Steel Plate Flanges:  ASTM A-105, ASTM A 694-F42, F46, F52, F60, F65, F70
  • LTCS Plate Flanges : A-350 LF2, A 516 GR.70
  • Alloy Steel Plate Flanges: ASTM A 182 - F5, F9, F11, F12, F21, F22 & F91
  • Cu-Ni Plate Flanges:  C70600 (90:10), C71500 (70:30), C71640
  • Nickel & Monel Plate Flange: UNS N04400, N05500, UNS N02200, N02201
  • Inconel Plate Flanges :  UNS N06600, N06601, N06625, N08800, N08810, N08825
  • Hastelloy Plate Flanges :  UNS N10276, N06022, N10665, N06455, Alloy 20
  • Titanium Plate Flanges :  Gr.1,2, 3 DIN 3.7025, DIN 3.7035, DIN 3.7055
  • Copper Alloys & AI Plate Flanges :  C2800, C36500, C46400, ASTM 6061, 6063, 6351

Services and certificates

  • Other Services :  Hot Dipped Galvanized, Coating, CNC Machining, Threading etc.
  • Test Certificate :  Manufacturer Test Certificate as per EN 10204 / 3.1 /3.2 & NACE MR 01 75
